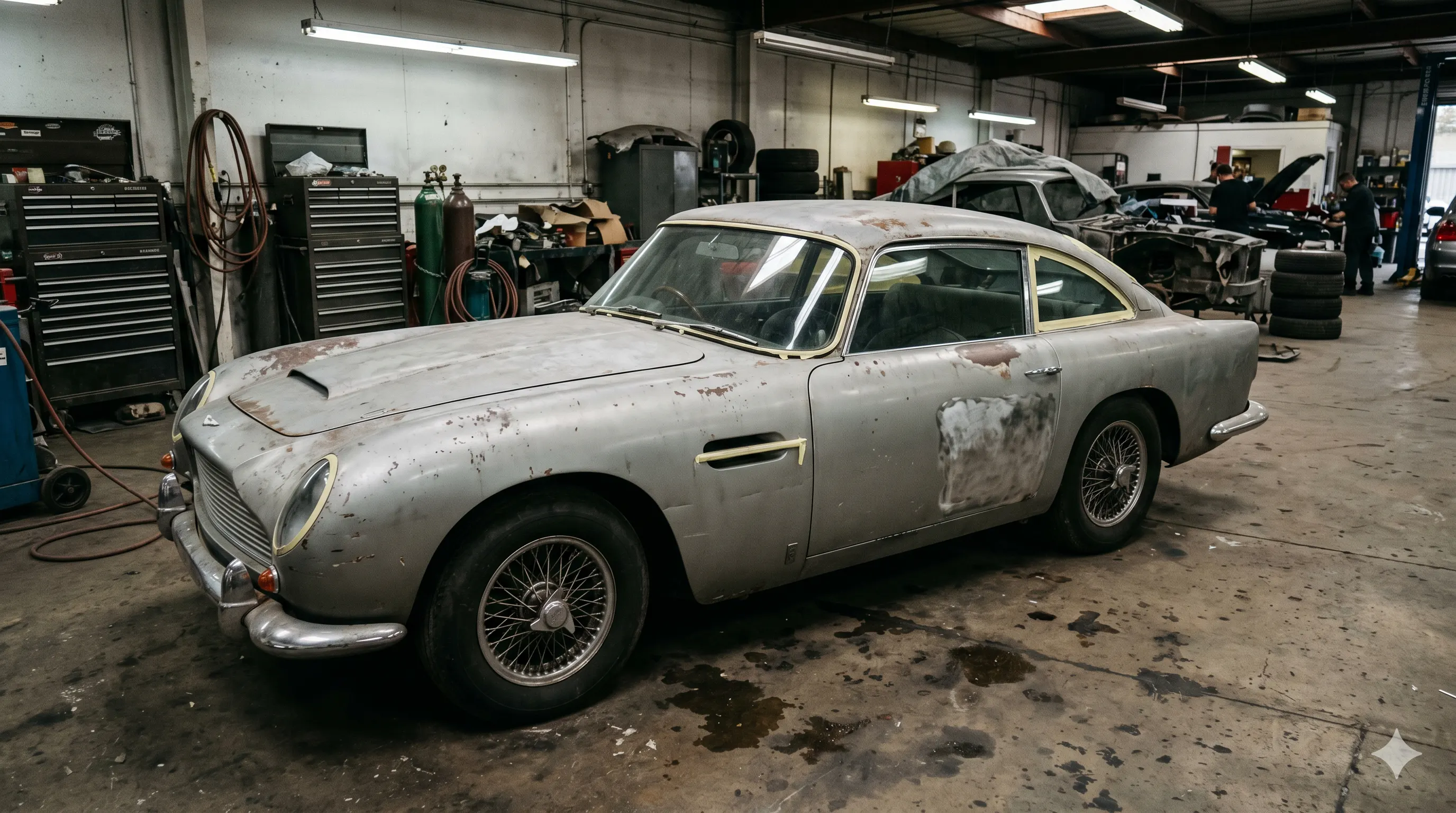

1963 Aston Martin DB5 — Silver Birch Museum Restoration

Provenance

This car carries a verified chassis number and full Newport Pagnell build records. The client’s brief was museum-grade fidelity — not an approximation, not a “better than factory” interpretation. Exactly what it left the factory with, minus six decades of wear.

The Colour Problem

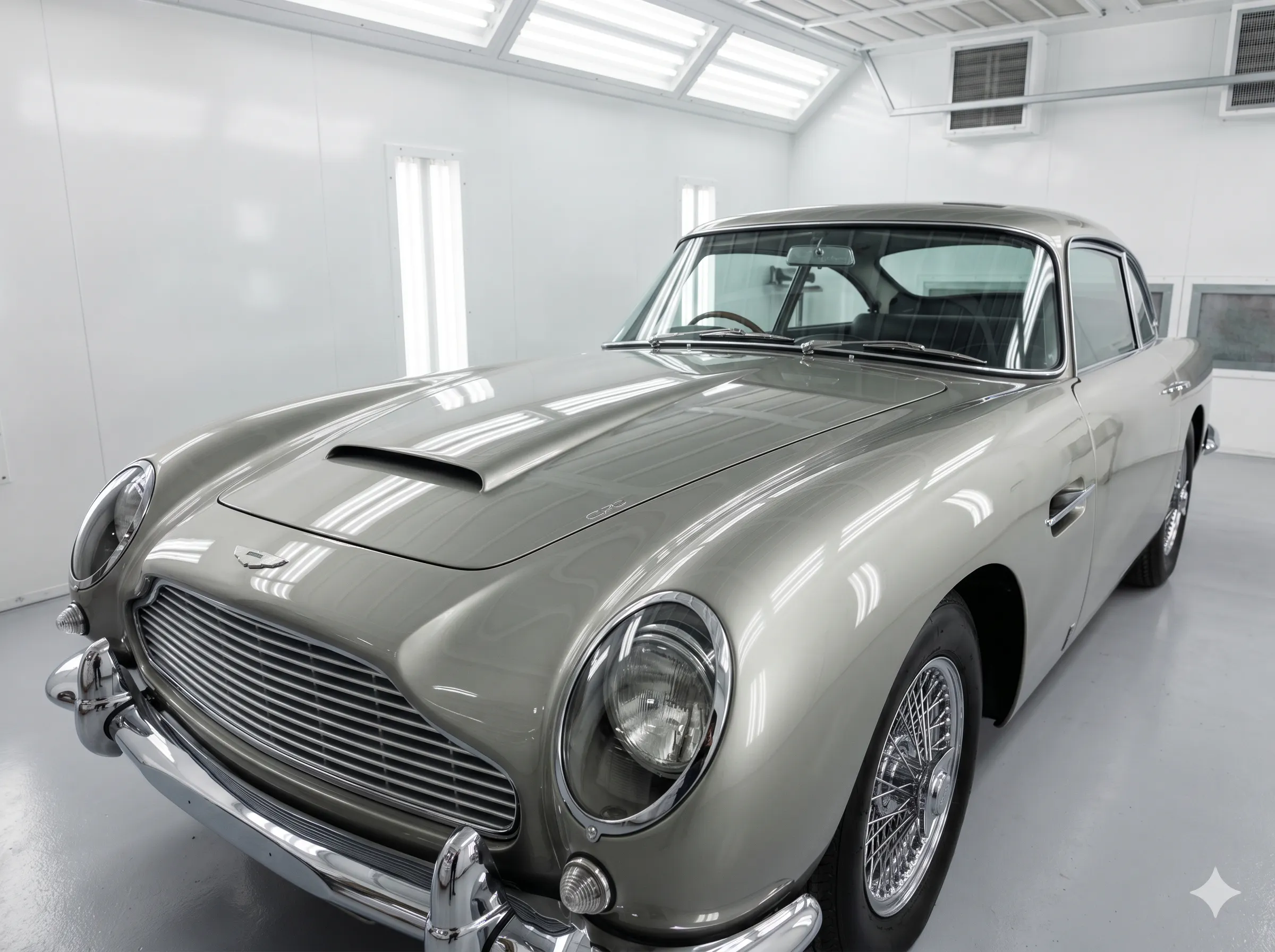

Silver Birch on a DB5 is not a simple silver. The original flake orientation creates a directional quality — it reads differently depending on the viewing angle and the light source. Modern automated paint mixing produces a uniform distribution that looks technically correct under a light meter but wrong to anyone who has seen a period car.

The solution was to hand-stir the mixed formula without an agitator, then let it settle for 45 minutes before spray. This partially re-settles the flake into a semi-random layered orientation that mimics the original brush/spray application of the period.

Three independent Aston Martin specialists (including one with Newport Pagnell factory training) confirmed the match as the most accurate reproduction they had seen outside of factory restoration.

Structural Work

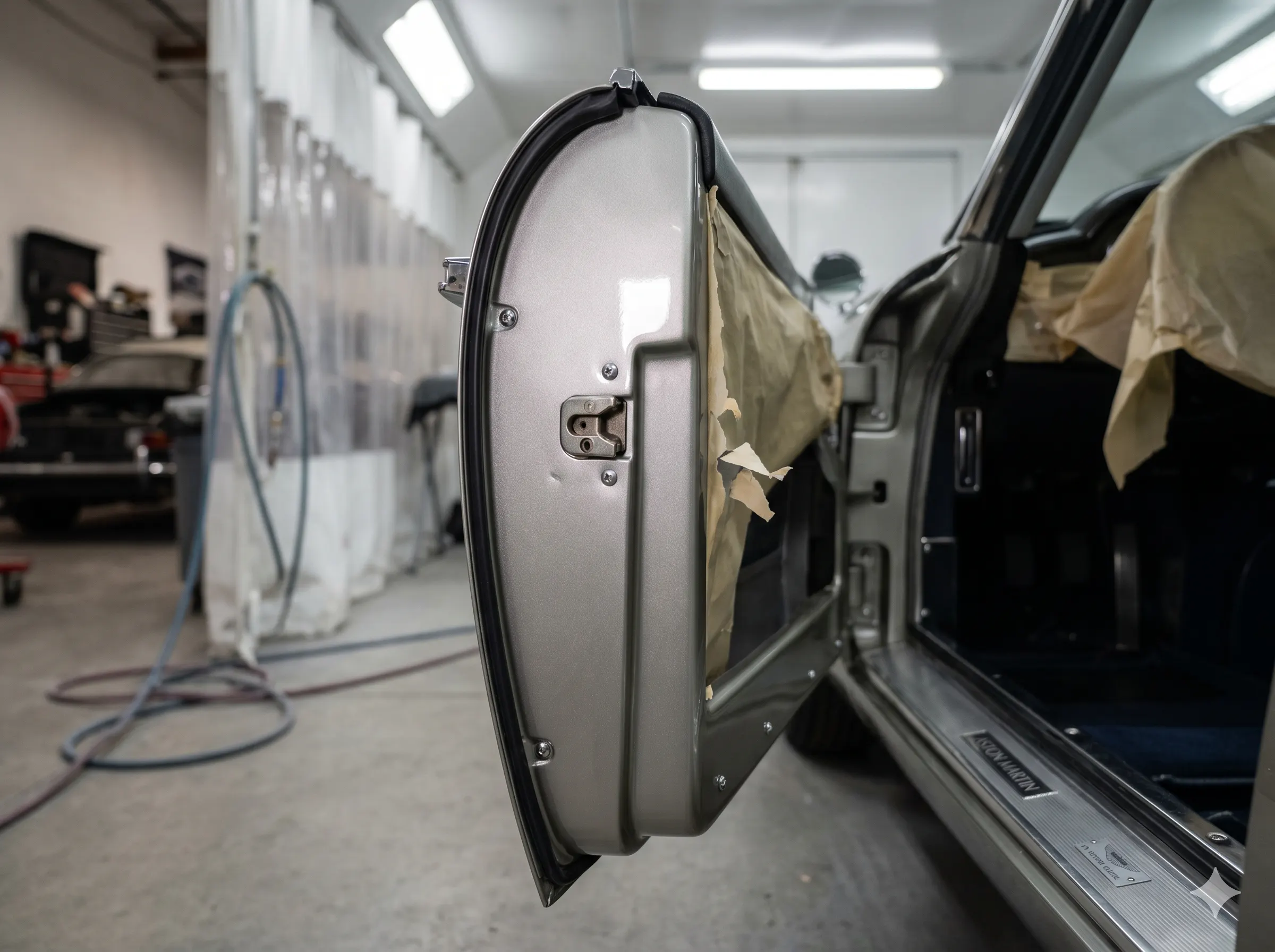

A previous repair to the offside front wing had introduced 4 mm of filler in an area that should be bare metal. This was removed, the panel metal straightened, and a welded repair made to a 12 mm corrosion hole in the sill.

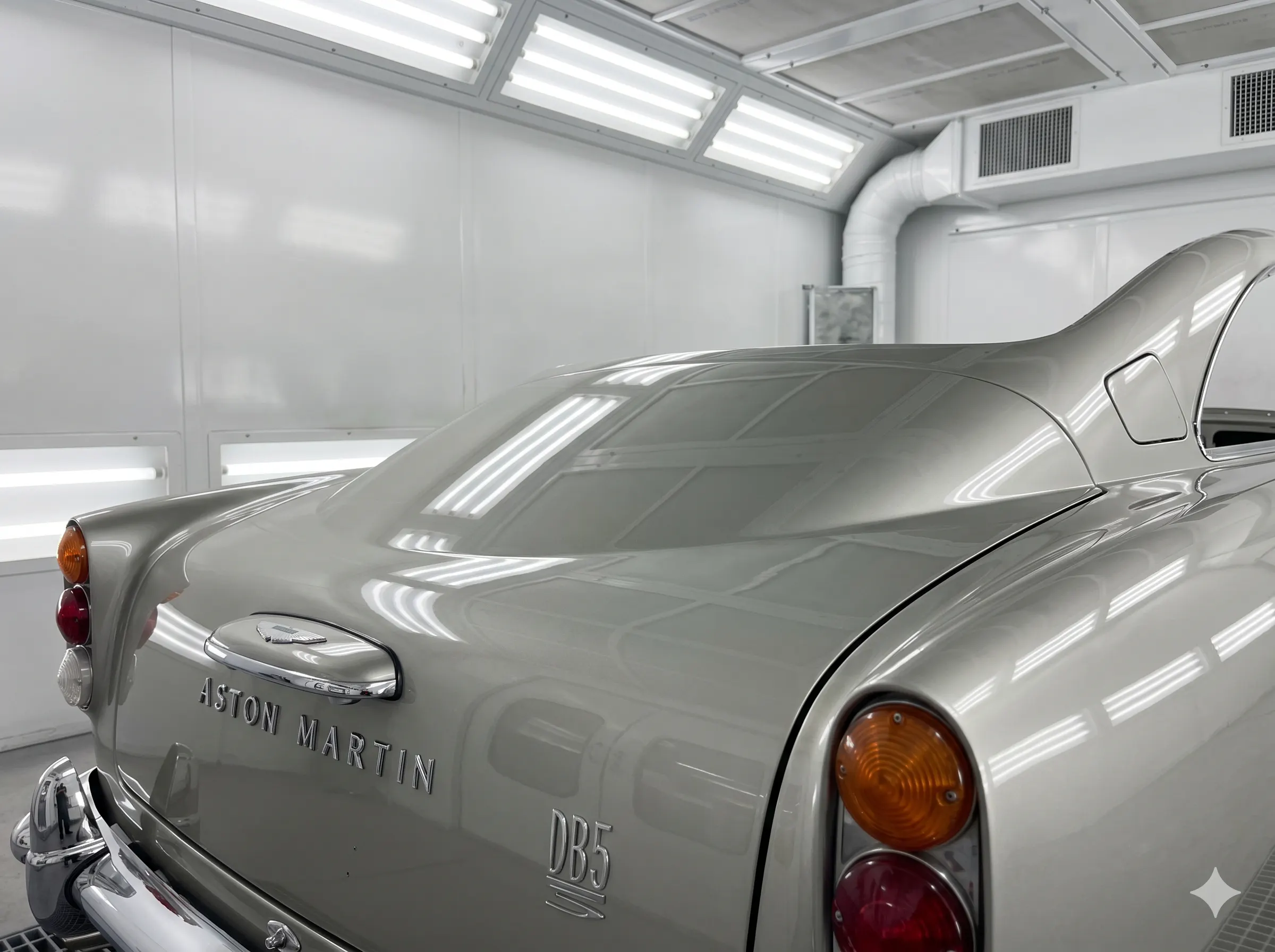

Total metal repair: 14 hours. No filler used anywhere in the final preparation.

Documentation Package

The client received a full photographic record of every stage (312 images), the mixing formula on archival card, all DFT readings by panel, and a written condition report comparing the car’s state at intake and handover.

This documentation package is now part of the car’s provenance file and has been noted in the Aston Martin Owners Club registry.
